Helping installers and developers source the right systems.
Supplier Of Recommended Underfloor Heating Systems
Supplier Of Recommended Underfloor Heating Systems
From screeded systems and low-profile retrofit solutions through to castellated panel and overlay systems, Ideal UFH supplies complete underfloor heating systems designed around your project requirements. We help installers, contractors, and developers choose the right system for performance, floor build-up, efficiency, and long-term reliability.
Underfloor Heating Systems Tailored By Expert Support
With over 20 years of experience supplying underfloor heating products across the UK, we support installers, developers, contractors, and trade professionals with reliable stock availability, expert technical guidance, and compatible system solutions designed to keep projects running efficiently.
How To Choose The Correct Underfloor Heating System?
Choosing the right underfloor heating system depends on your floor construction, available floor build up, installation method, and overall project requirements. Whether you’re working on a new build, extension, renovation, or retrofit project, selecting the correct system helps improve efficiency, reduce installation issues, and achieve the best long-term heating performance.
Let’s work together
We Supply Underfloor Heating Systems For Every Type Of Property
- Pre-assembled stainless steel manifold systems
- Flow meters, pressure gauge and automatic air vent included
- Available in multiple port sizes for residential and commercial projects

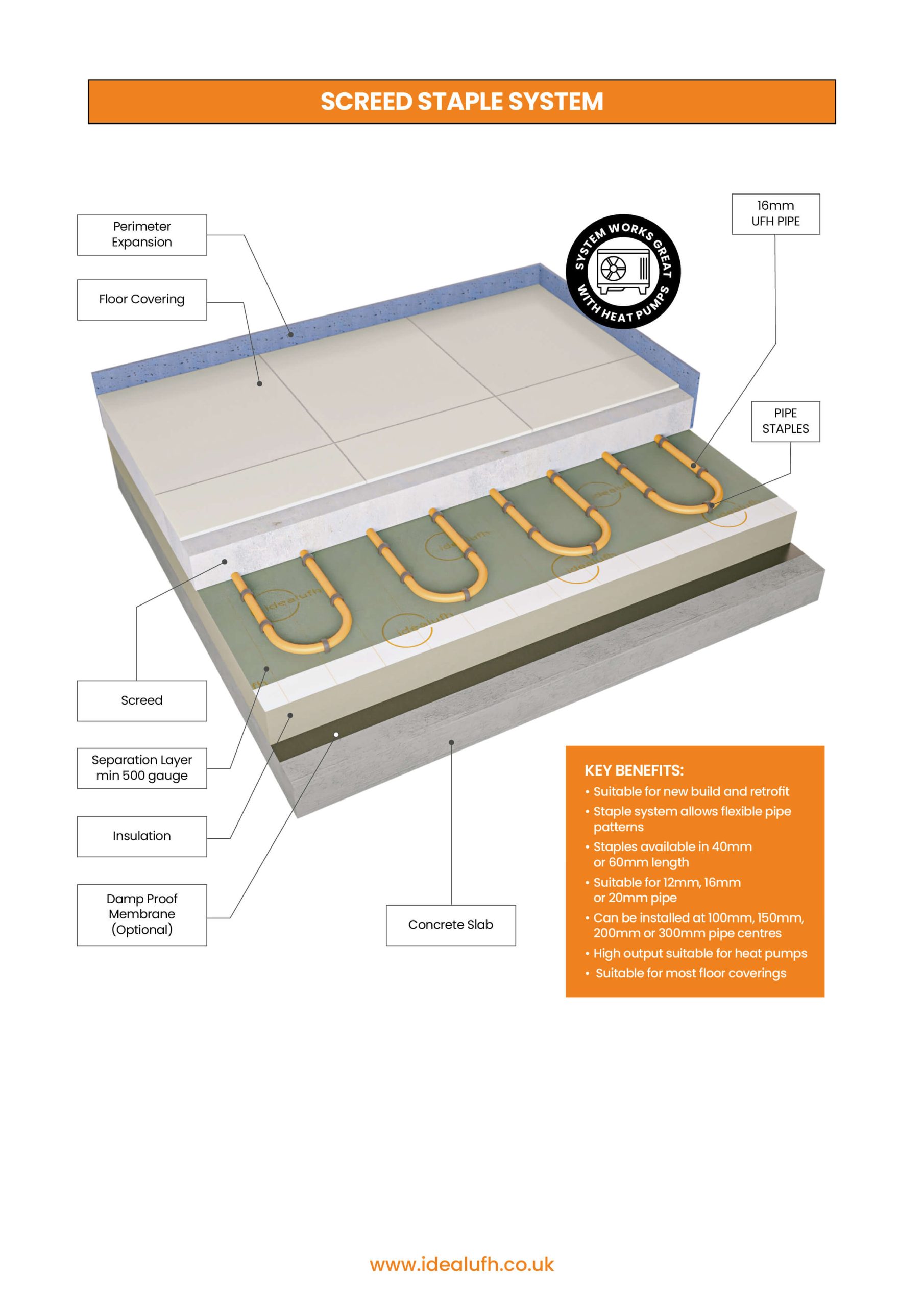

| Code | Description |
|---|---|
| cl01 | staple at 40mm |
| cl02t | staple at 60mm |
| cl03 | manual staple 66mm (100) |
| cr02 | cliprail 14-16mm taped |
| bj10050 | 50m roll edge expansion 100mm x 5mm with apron |
| clg01 | staple gun for 40mm and 60mm clips |
| polythene100m2 | 50m x 2m seperation layer polythene roll |
- Pre-assembled pumped thermostatic mixing unit
- Easy-fit connections for fast installation
- A-rated pump with reliable temperature and pressure control
| Code | Description |
|---|---|
| s06 | screed panel 1250mm x 850mm x 20mm |
| cl01 | staple at 40mm |
| clg02t | staple at 60mm |
| polythene100m2 | 50m x 2m seperation layer polythene roll |
| bj10050 | 50m roll edge expansion 100mm x 5mm with apron |
- Pre-assembled stainless steel manifold systems
- Available in multiple port sizes for different projects
- Designed for reliable flow control and easy installation
| Code | Description |
|---|---|
| kb12 | LowFix panel 600mm x 600mm x 15mm for 12mm pipe |
| bj10050 | 50m roll edge expansion 100mm x 5mm with apron |
| polythene100m2 | 50m x 2m seperation layer polythene roll |
- Pre-assembled stainless steel manifold systems
- Available in multiple port sizes for different projects
- Designed for reliable flow control and easy installation
| Code | Description |
|---|---|
| onfloor16 | 1200mm x 600mm x 16mm onfloor cement faced panel |
| onfloor16T | 1200mm x 600mm x 16mm transition board |
| cps300-16 | 1200mm x 600mm x 20mm onfloor cement faced panel |
| cps300b-16×50 | 1200mm x 600mm x 20mm transition board |
| 6713 | 35mm onfloor system washer (pack 100) |
| bj10050 | 50m roll edge expansion 100mm x 5mm with apron |
- Pre-assembled stainless steel manifold systems
- Available in multiple port sizes for different projects
- Designed for reliable flow control and easy installation
| Code | Description |
|---|---|
| ap2 | 1000mm x 390mm double heat spreader plate |
| ap3 | 1000mm x 390mm triple heat spreader plate |
| ap1 | 1000mm x 140mm single heat spreader plate |

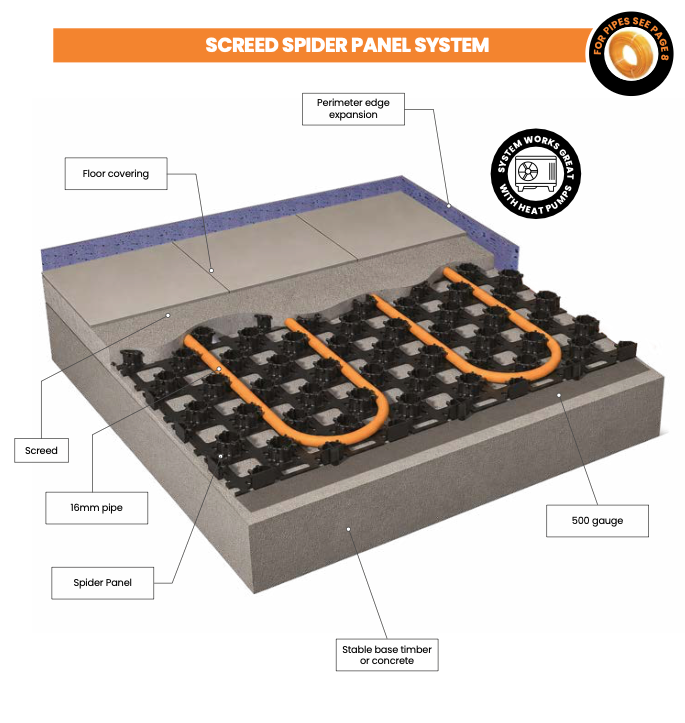

- Strong spider panel design for secure 16mm pipe installation
- Suitable for screed floor constructions
- Excellent heat output and even heat distribution
- Compatible with low-temperature heating systems and heat pumps
- Quick and efficient installation process
- Helps maintain consistent pipe spacing across the system
- Suitable for residential and commercial underfloor heating projects
- Designed for installation onto stable timber or concrete subfloors
- Works with perimeter edge expansion and standard screed applications
| Code | Description |
|---|---|
| sp16 | spider panel 1200 x 600 x 20mm |
| bj10050 | edge expansion 100 x 5 x 50 |
| polythene 100m² | 50m x 2m 500 gauge polythene |
| cl01 | 40mm staples for staple gun (300) |
| cl02t | 60mm staples for staple gun (300) |
| cl03 | 66mm staple clip manual fit (100) |
- Low-profile underfloor heating system with only 28mm overall build-up
- Designed for use with 12mm underfloor heating pipe
- Routed 22mm chipboard panels for accurate pipe placement
- Suitable for timber floor constructions and floor joist installations
- Excellent heat transfer for fast and even room heating
- Compatible with heat pumps and low-temperature heating systems
- Lightweight system ideal for renovation and retrofit projects
- Works with insulation layers for improved thermal efficiency
- Suitable for residential and light commercial applications
- 6mm topper board provides a stable surface for floor finishes
| Code | Description |
|---|---|
| kbd-1202 | routed chipboard 150 1200 x 600 x 22m |
| kbd-1201 | topper board 6mm x 1200 x 600 |
| 6731-m5 | chipboard screws 80mm (100) |
| 6731-m4 | chipboard topper board screws 20mm (100) |
| Use D4 PU Glue to join chipboard joints and joists |
Underfloor Heating Supply
Fast Delivery For Your Underfloor Heating Systems In 24 Hours
At the core of our business is supplying high quality underfloor heating products at competitive prices, backed by expert support from enquiry through to installation. With extensive UK stockholding, fast nationwide delivery, and over 20 years of industry knowledge, we help installers, developers, merchants, and contractors source reliable products with confidence.
We Partner With The Best
Our Merchant Partners
Our Screed Partners
Our Installation Partners
Still have questions?
Frequently Asked Questions About Our Underfloor Heating Systems
Don’t worry if we have’t answered your question below, our expert team is on hand to assist.
Yes. We can supply complete underfloor heating solutions including manifolds, controls, pipe, wiring centres, actuators, and system components, helping ensure everything is compatible and easier to install.
We carry extensive UK stock, allowing many systems and components to be dispatched quickly, often within 24 hours depending on availability.
Yes. We can help with product selection, system compatibility, layout guidance, and general advice before you place an order, helping ensure you purchase the correct components first time.
Most floor finishes are compatible, including tile, laminate, engineered wood, vinyl, and carpet. Some finishes transfer heat more efficiently than others, so we can advise on the best setup for performance and comfort.
Pipe size depends on the system design, heat requirements, and floor build-up. Common options include 10mm, 12mm, and 16mm pipe. We can help guide you to the correct specification for your project.
Not always, but different floor constructions may require different solutions. For example, a screeded system may suit a ground floor, while a suspended timber floor upstairs may require an in-floor system with heat spreader plates.
Absolutely. We supply several low-profile systems specifically designed for retrofit and renovation projects where floor build-up height is limited.
Yes. Many of our underfloor heating systems are designed to operate efficiently with air source and ground source heat pumps, helping improve energy efficiency and lower running temperatures.
Screed systems are installed within a screed layer and are commonly used in new builds.
On-floor systems sit above the subfloor and are ideal where floor height needs to stay low during renovations.
In-floor systems are designed for suspended timber floors and fit between joists using heat spreader plates.
The best system depends on your floor construction, available floor height, heat source, and whether the project is a new build or renovation. Our team can help recommend the most suitable option based on your plans, helping avoid compatibility or performance issues later on.
